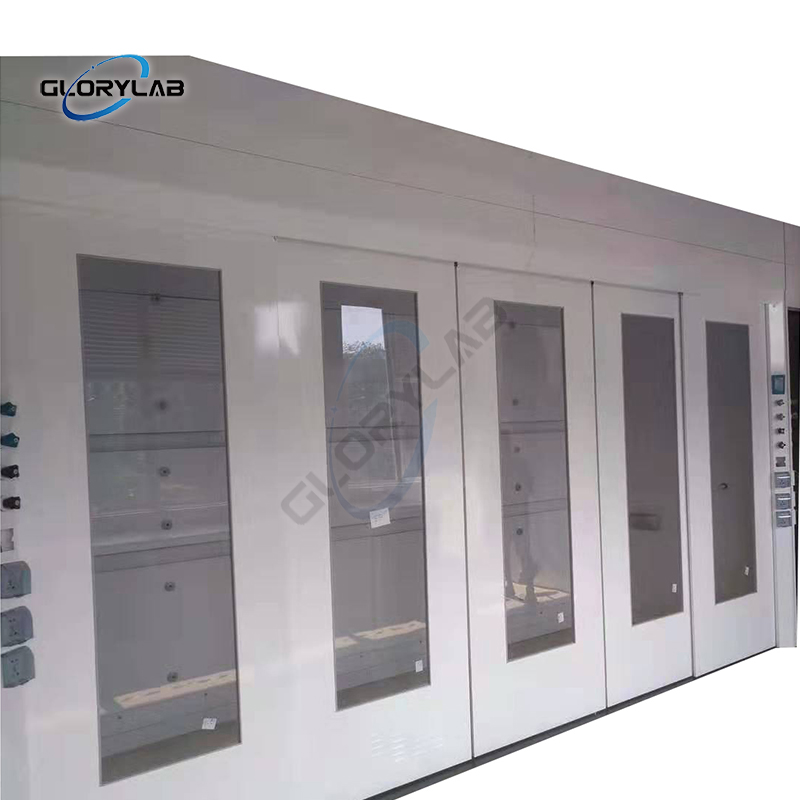

Walk in fume hood with movable horizontal door

Walk in fume hood with movable horizontal door （FC028）

Advantage: European design with high cost performance.
Nice appearance with excellent process and finish.
High quality Fume hood with European standards.
Different and paticular interior structure

Big space to put large instruments；Movable door: The lifting and dropping are flexible which can stop at any position. Device is
installed to limit the top position. With 6mm anti-explosion glass with film inside.Sliding door
and hinge coaxial pulley wheel system is used to ensure the smooth and exact balance, this
system can prevent the tilting of movable door and the lifetime can reach above 100,000 times.

Size:2400×850/1500x2350mm.

Exterior material: 1.2mm cold rolled steel plate coated with AkzoNobel epoxy resin powder
after welding,polishing, acid cleaning, phosphating etc. It includes 13 kinds of chemical treatment
processes. Coating thickness can reach 80um for fume hood.

Lining material and guidance flow panel: 5mm compact solid panel which is chemical resistant
and temperature resistant. Corrosive material is used to connect inside lining panel and guidance
flow panel.Fixed parts which can be dissembled are used to connect bottom of guidance flow
panel and worktop for steel fume hood.

Steel side panel can be dissembled, There are two
pcs of maintainance side compact panel can be dissembled. The public device can be maintained
between the steel exterior structure and lining panel.

Movable door: The door can be moved horizontally. 5mm tempered glass to provide maximum safety for operator. Synchronizing system with wheel is used to ensure the sash balance and easy lifting.Paticular gear transmission.

Light: Antisepsis day-light lamp fitted in gas insulated housing, not lower than 400lux.

Socket: Four sets of 220 volt/ 10 AMP multi-functional electric socket outlets with water proof
cover. European or England socket is available for your selection for fume hood.

Worktop: 19mm epoxy resin worktop with 25mm water proof edge, 20mm ceramic worktop or
lab grade phenolic resin worktop for your selection.

Lab accessories:
1. Yellow brass, epoxy resin coated water control valve and cock.
2. Yellow brass, epoxy coated gas control valve and cock. The gas valve is with safety function
to avoid air leakage, it will not be unintentionally turned on unless you press it.

Electrical box: with electrical leakage and overloading protection device for fume hood.

Control panel:
LCD control panel which is capable of controlling ON/OFF of fume hood, lamp and fan. Shutdown
time can be set in advance. We can furnish control panel imported from France which can show
face velocity,make alarm when meeting with unproper airflow etc.

Storage Cupboard:
1. 3 or 4 double walled doors made of 1.2 mm thick cold-rolled steel or galvanized steel and spray
painted as specified above.
2. 304 Stainless steel handles and S.S exterior hinges.
3. PP United Cup, resistant to acids, alkali and organic impregnations.

Face velocity: It’s 0.4-0.6m/s when we open the sash at 24”. (when the sash is fully opened).

We offer our customer with a variety of integrated service covering technical consulting,
building of whole ventilation system,HVAC, clean room and central gas supply system
etc in addition to furnish products to our customers. We are committed to helping our
customers to set up safer, more comfortable labs with energy saving.Remark:
1. We can add polypropylene storage cabinet or PP pallet in the base cabinet to store
strong chemicals.The base cabinet is connected with exhaust system of fume hood which
will exhaust waste air in it.
2. We can furnish duct and fan if it’s required by customers.
3. We can furnish custom-built fume hood based on customer’s requirement.
