Base and long aluminum grab handle are separate from cabinet, it can be choosed by customers depending on their taste. Dark gray is normal colour which is stain-resistant.

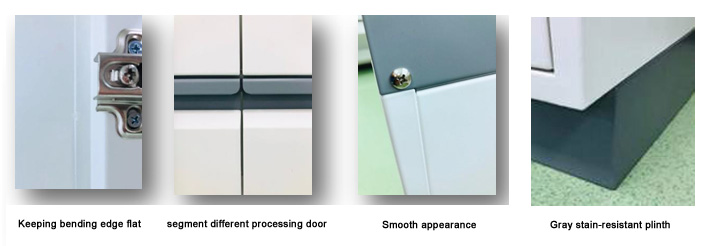

Advantage: 1. Adopting 2.0mm thick steel plate at bottom base with better weight capacity. 2. Applying a variety of welding technology which lead to excellent whole weight capacity, meticulous welding and exquisite welding spot. 3. Self closing drawer slide and hinge. 4. Pretreatment including acid pickling and phosphating,oil and rust removing; more than 10 coating processes. 5. Separated gray long grab handle and plinth which is stain-resisitant and looks more luxious.
Feature:
1. Certification: Authorized SGS certification showing the conformity of US standard SEFA-8M,which test many items including weight capacity of steel cabinet etc. This certification shows the superior quality of our steel bench and it can meet the highest standard in this field.
2. Quality improvement While complying with highest standard of lab bench, we also focus on improvement of steel cabinet and its accessories. Pls see details as below: I. Insisiting on using high quality accessories. II. Adding sound absorbing material inside the door to minimize the noise when door is closed. III. Open mould to make specialized collision bead to reduce the noise at most.
3. Prominent appearance We pay attetion to every step during production especially on welding, polishing and coating of epoxy resin powder which decide the final appearance and keep improving any of them continously
4. Strict quality control: It’s our goal to seek perfect products and service for customer’s satisfaction. Pls contact with us once you have any idea or suggestion on product design, quality improvement or service etc.
The size can be custom-made requested by customers.
A. Worktop: The worktop is based on the requirement of customers for lab furniture bench such as phenolic resin board, epoxy resin board or ceramic board. The edge of worktop will be treated specially to ensure its safety for human body.
B. Door and cabinet body: The cabinet with double-layers door is made of high quality 1.0/1.2mm cold rolled or galvanized sheet with different thickness as per its different loading weight. The surface is treated by acid washing, phosphorization before coating by epoxy resin powder. The cabinets can be opened with all blank space without middle support. The inside cabinet is equipped with adjustable setting for mobile layer. We can fill the sound insulation material into the inside space between two layers if it’s required by customer with excellent bearing capacity for the support of drawer.
C. Handle: Stainless steel U-type handle or long handle shaped once made of steel or concealed grab steel combined handle,or aluminum alloy handle coated with epoxy resin powder for lab furniture.
D. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.
E. Hinge: Using durable 304 stainless exterior steel hinge or 304 hydraulic hinge with excellent weight capacity which is rust resistance and can be used for long time.
F. Drawer sliding rail: Using 3-joints bearing drawer rail with noise reduction, it can ensure the full opening for the drawer with good bearing capacity and without deforming.
G. Shelf: The shelf is made of steel frame and steel hanging pieces. The layer is made of toughened glass which is suitable to put all kinds of chemicals on it. There are multi-functional or other type of sockets on the column to satisfy the customers from different countries for lab furniture.
H. Wall mounted cabinet: It’s supported by column of reagent shelf which is with excellent weight capacity. The material is same as free standing cabinet.
