This wall type lab spot extractor is a luxious model specially designed for installing on the wall and statisying higher requirements of some clients due to its uniqe design and strong feature.
Model:JH-FE009
Product Description：
Joint: Aluminum alloy, adjustable 360 degree rotation direction, easy to disassemble and clean.
Seams and sealing rings: not easily aged.
High density rubber joint rod: aluminum alloy.
Joint tightening knob: Full copper strip with stainless steel bearings, lock with joint connecting rod.
Air flow regulator: manually adjust the external valve knob to control the intake air flow.
Arched/cup-shaped air collector: made of high-density PP/PC material.
Expansion pipe: 75mm alloy pipe.
Unique 360 degree rotating device: centered around a fixed frame, with a maximum movement radius of up to 1600mm.
Fixed base: Made of aluminum alloy square tube, strong fastness and corrosion resistance
Tube size:
We have launched 2 lengths (2600/3150mm) to choose from, depending on different needs and on-site conditions
Conditions.

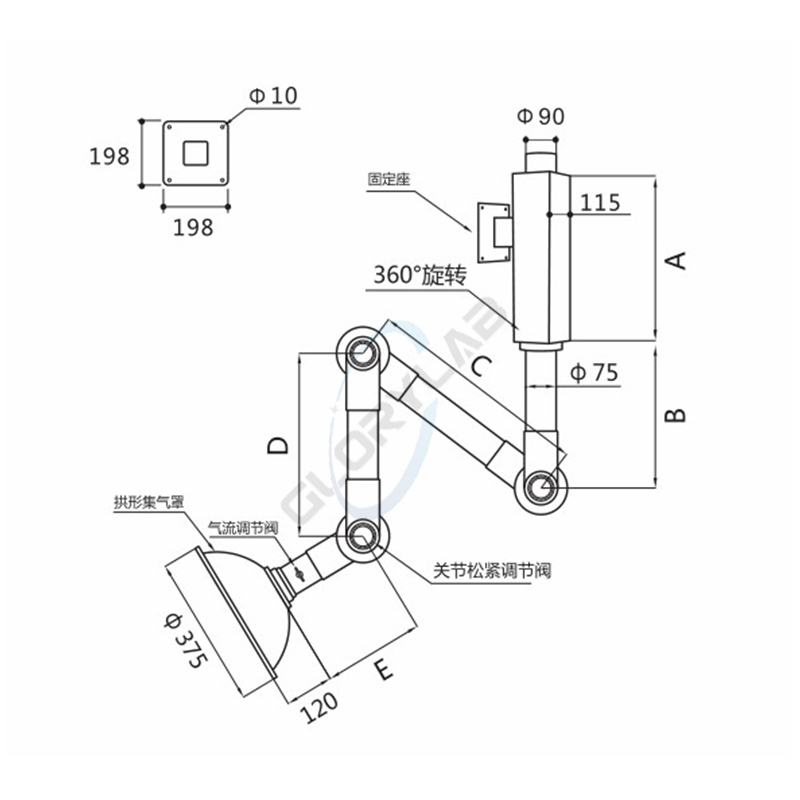

Drawing：
