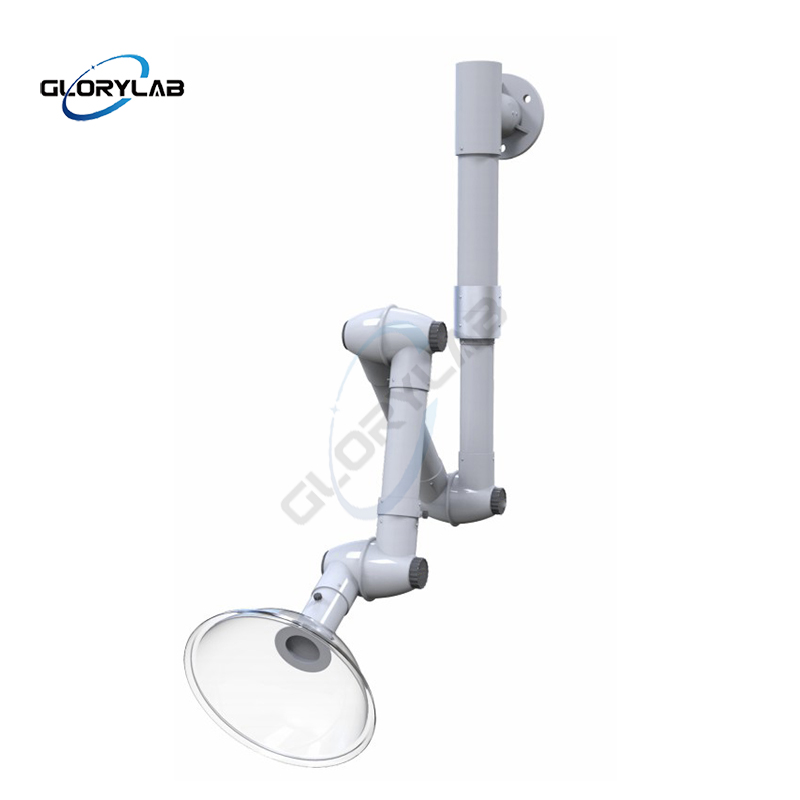

Glorylab wall PP laboratory spot extractor is made of popypropylene providing moe flexible installtion method in some special working environment.
Model:JH-FE002W
Joint: Made of high-density PP material, it can rotate 360°. Easy to disassemble, reassemble and clean.
Joint sealing ring: High-density rubber is not prone to aging and is installed inside the two joints to facilitate rotation and provide sealing.
Joint tightness knob: Made of all copper to ensure that the thread does not slip, it is embedded with stainless steel bearings and locked with the joint connecting rod.
Joint connecting rod: 304 stainless steel
Airflow regulating valve: Manually adjust the external valve knob to control the incoming air flow.
Arched/cup-shaped gas collection hood: High-density PP/PC material, conventional diameter of the hood opening :Φ375mm
Connecting pipe: High-density PP material, Φ75mm
It features a 360° length of 3.15 meters with the fixed frame as the center, and the maximum moving radius can reach 1610mm
Rotating device: 2.6 meters in length, with the fixed frame as the center, the maximum moving radius can reach 1370mm
Base connection pipe: High-density PP material, Φ90mm
Fixed base: Made of high-density PP material, it is formed by injection molding in one piece. It is not bonded, has strong firmness and does not come off the base. Fix it to the laboratory wall with M8 expansion screws.

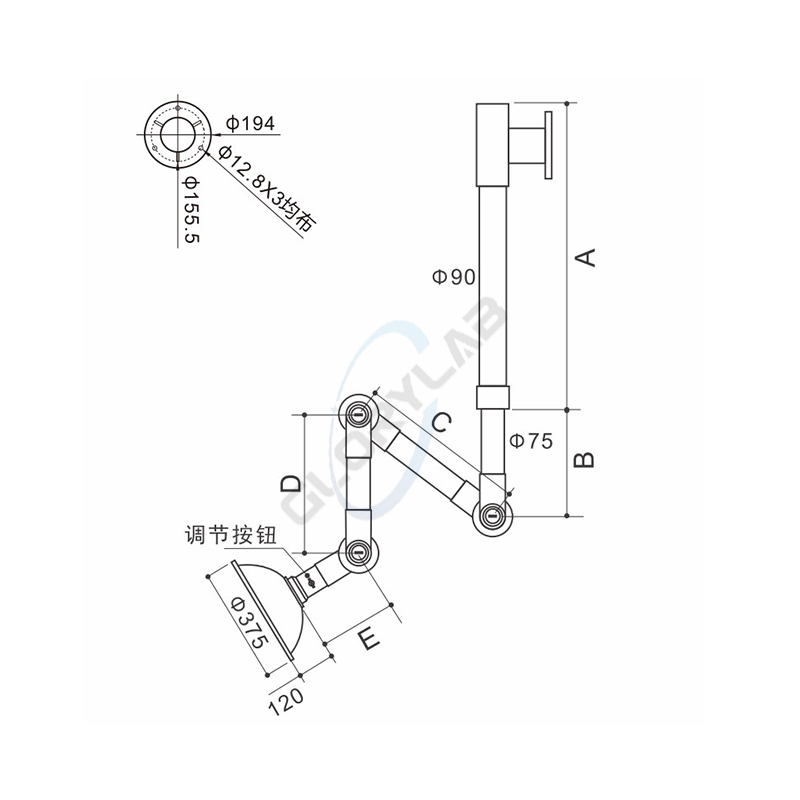

Drawing:
