Model: JH-SC021
Size: 1200x450x1900mm

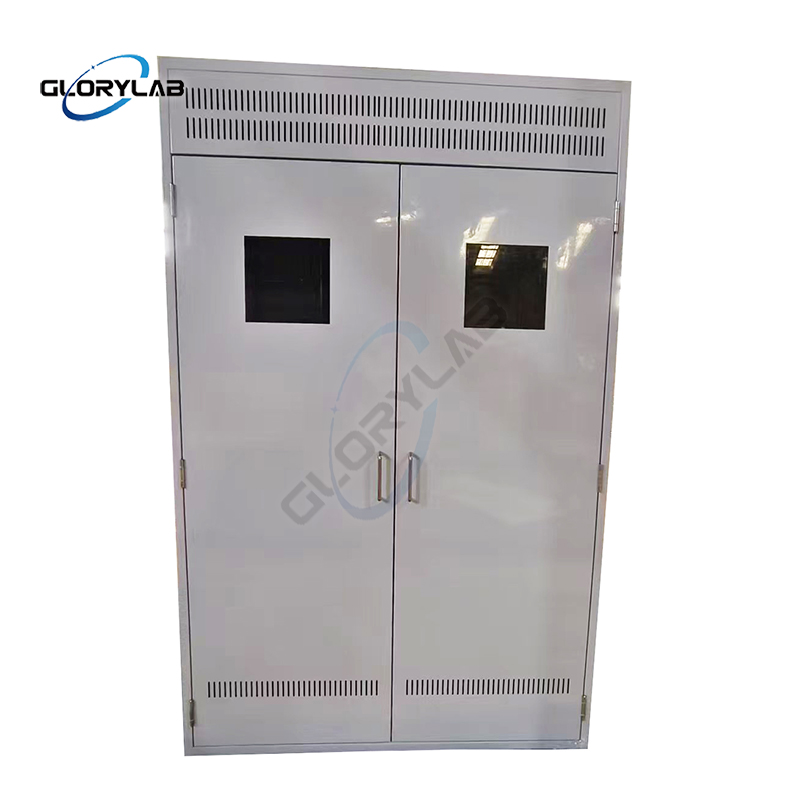

It’s a gas cylindar storage cabinet made of steel used to improve local exhaust ventilation, protect steel cylinders from fires outside the cabinet, and protect surrounding objects from internal fires.

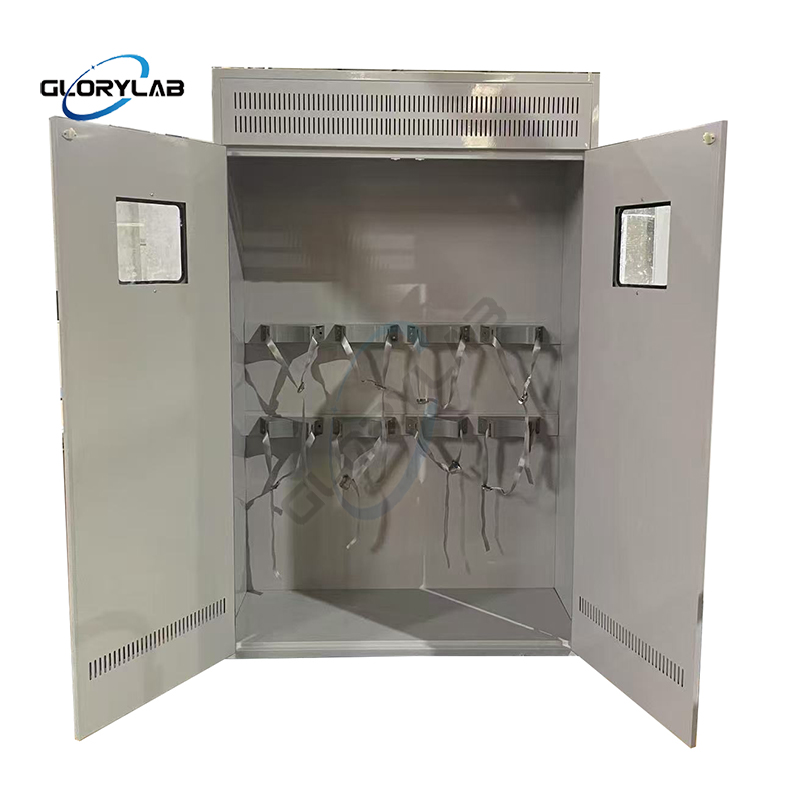

The cabinet is equipped with gas cylinder clamps to prevent gas cylinders from tipping over.
Optional function: applying microcomputer timing switches and high-sensitivity probes to detect gas leaks, with automatic exhaust alarms.
Cabinet /panel material:1.0mm cold-rolled steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing.
Door and drawer:double-layers structure with sound absorbing material inside,keeping noise minimum when door is opened or closed.
Hinge:304 S.S hydraulic/exterior hinge. with tempered glass on door.
Handle: specialized handle.
Remark: for 4 sets of gas cylinders use.
In addition to gas bottle cabinet for 4 gas cylindars, Other models are also frequently applied such as cabinets containing single, two, and three cylinders.
1. tall cabinet with single bottle 600*450*1900mm
2. storage cabinet with double cylindars 900*450* 1900mm
3. gas cyclindar cabinet with 3 cylindars 1200*450*1900mm
Laboratory gas cylinder cabinets are widely used in laboratories, hospitals, and manufacturing industries to store various types of gas cylinders and ensure their safe storage and use.
Its explosion-proof, fireproof, and safety detection functions significantly improve the safety of these places
